C1D2 Fume Hood
All ProjectsFume Hoods

C1D2 Fume Hood

ColoradoComplete

Description

C1D2 Fume Hood Package, Single Skin – Walk-Up Style.

Project Gallery

FH-SS-9-3-8-1L front elevation – walk-up style C1D2 fume hood with full-height tempered glass panels and louvered lower plenum
01 / 05
FH-SS-9-3-8-1L front elevation – walk-up style C1D2 fume hood with full-height tempered glass panels and louvered lower plenum
Three-quarter view showing compact single-skin enclosure, self-closing door hardware, and fire extinguisher bracket
02 / 05
Three-quarter view showing compact single-skin enclosure, self-closing door hardware, and fire extinguisher bracket

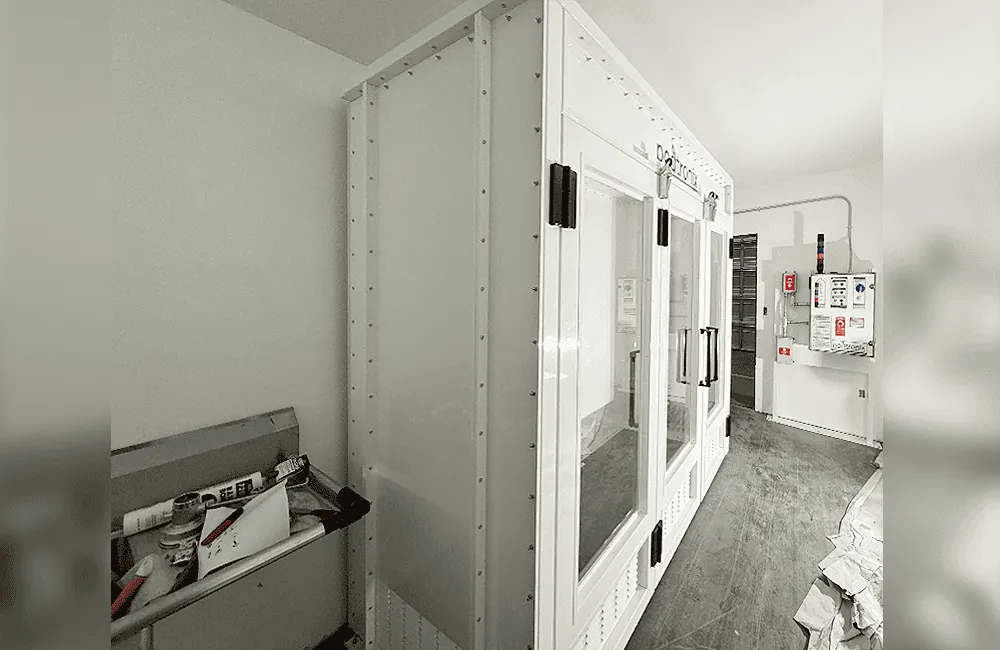

Installation view – side profile with Podtronix control panel mounted to adjacent wall
03 / 05
Installation view – side profile with Podtronix control panel mounted to adjacent wall

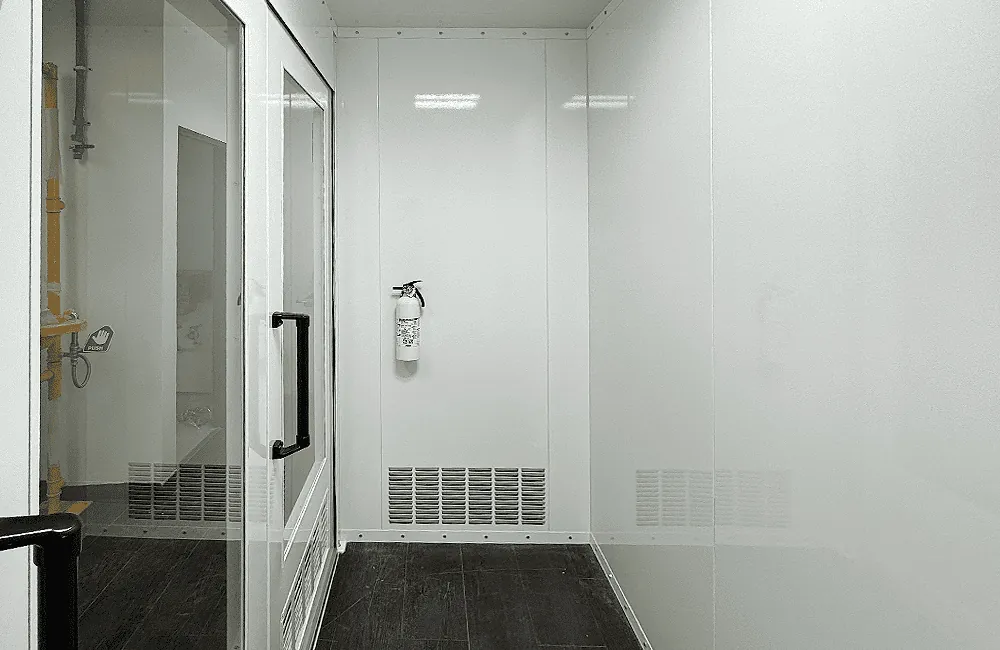

Interior – flush panel walls, lower-plenum louvered exhaust, and fire extinguisher station
04 / 05
Interior – flush panel walls, lower-plenum louvered exhaust, and fire extinguisher station

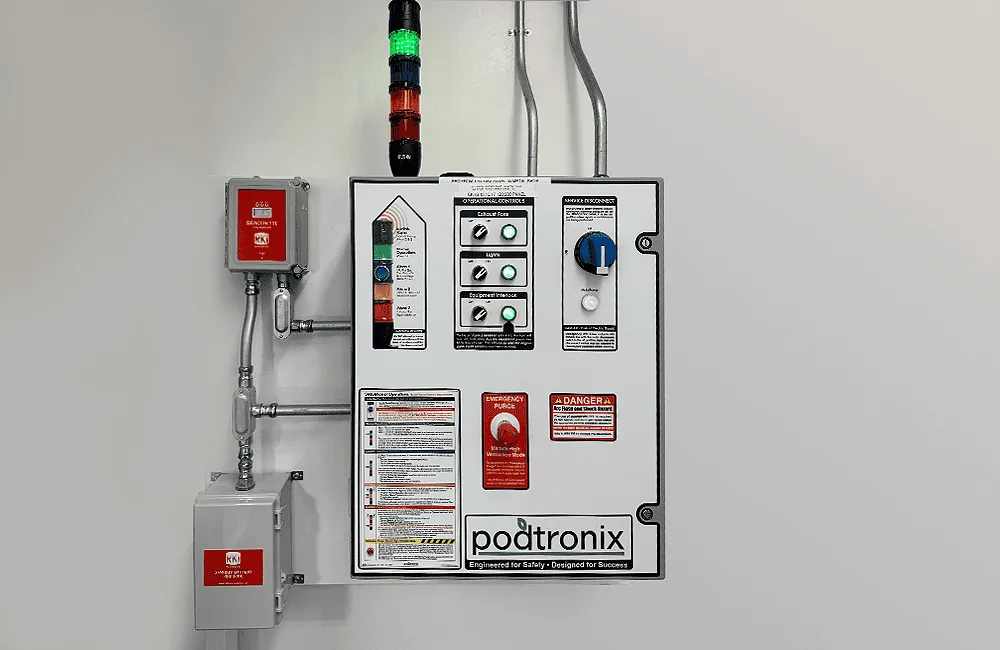

Podtronix control panel – status alarm tower, exhaust fan control, gas detection interlock, emergency purge, and service disconnect
05 / 05
Podtronix control panel – status alarm tower, exhaust fan control, gas detection interlock, emergency purge, and service disconnect

Project Specifications

Location
Colorado
Category
Fume Hoods
Model
FH-SS-9-3-8-1L
Dimensions
I.D. 8'8″ Wide × 3'0″ Depth × 8'0″ High (27 sq. ft.) · O.D. 9'0″ Wide × 3'4″ Depth × 8'2″ High (27 sq. ft.)
Status
Complete
