UL Listed Extraction Lab

MissouriComplete

Description

2 Zone UL Listed C1D1 Extraction Lab Package, Dual Skin.

Project Gallery

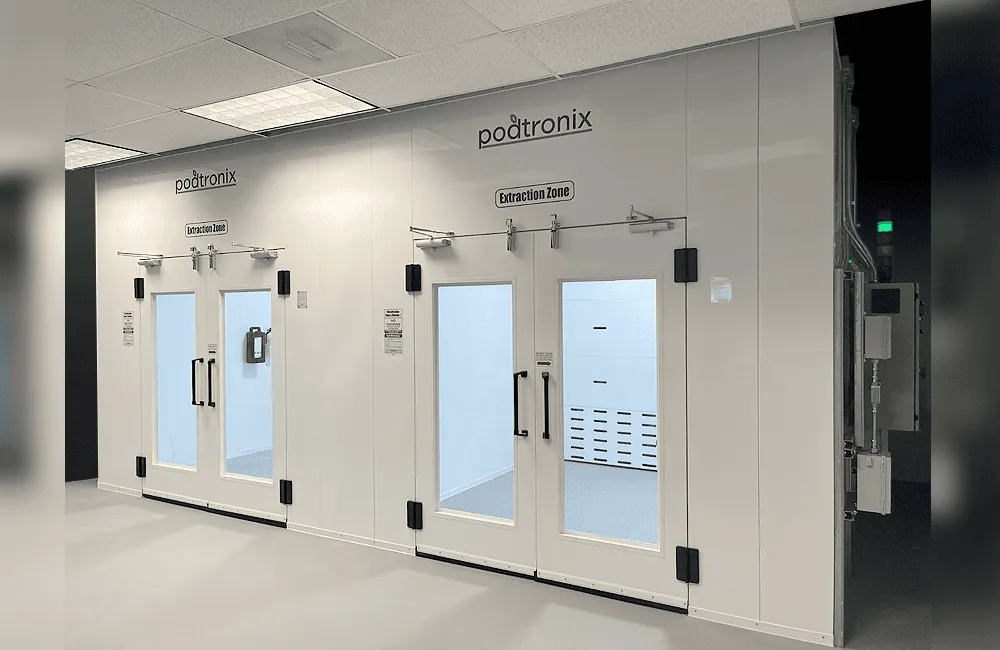

Dual-zone Extraction Lab exterior – two independent Extraction Zone entry doors side by side
01 / 05
Dual-zone Extraction Lab exterior – two independent Extraction Zone entry doors side by side

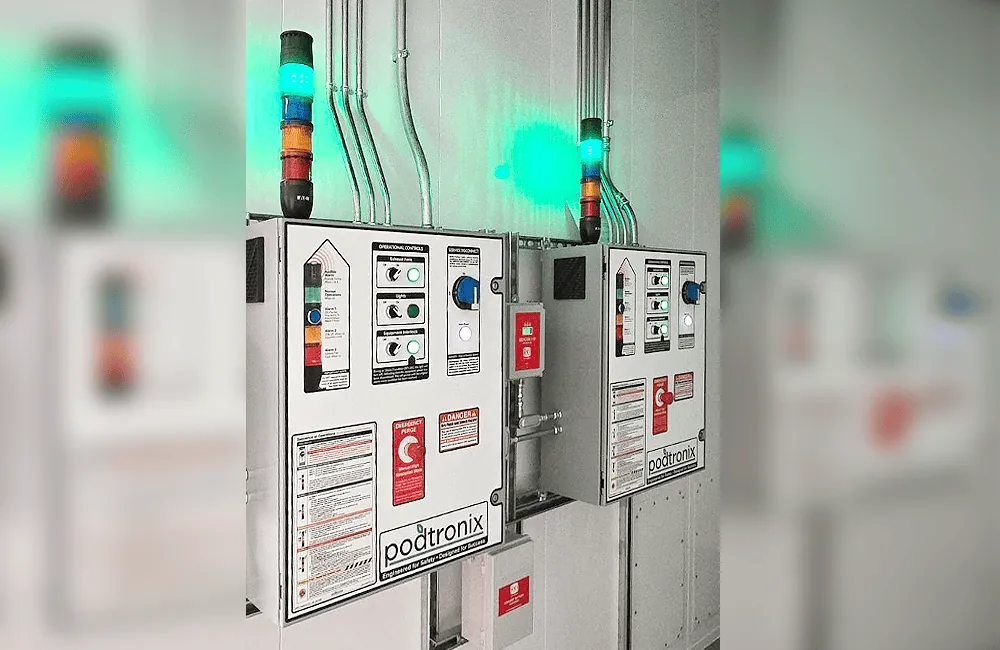

Dual Podtronix control panels with status alarm towers illuminated green – system operational
02 / 05
Dual Podtronix control panels with status alarm towers illuminated green – system operational

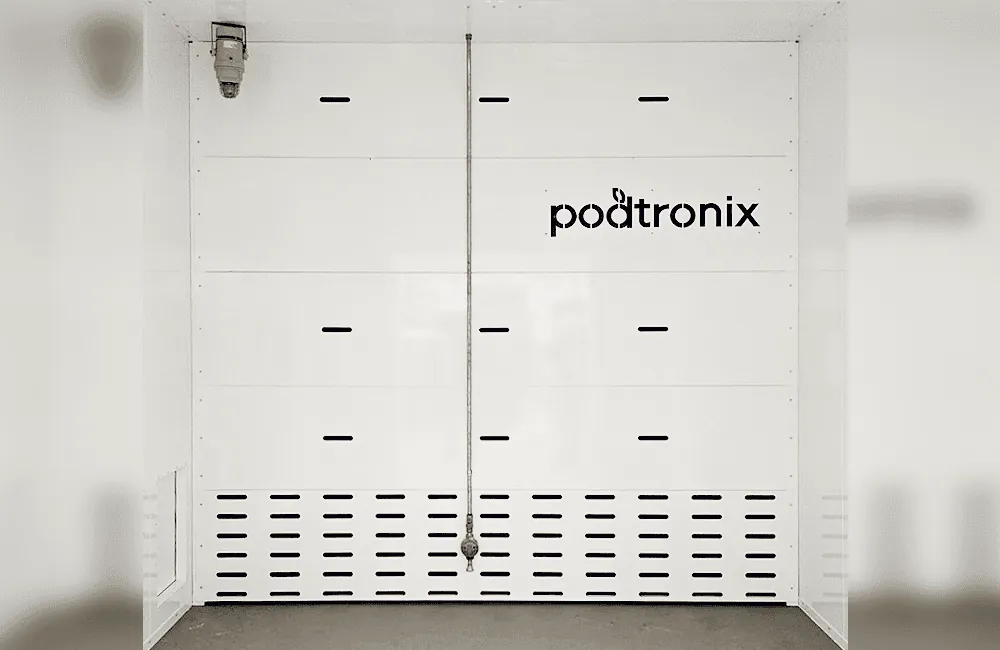

Louvered lower-plenum vent wall with C1D1-rated explosion-proof fixture overhead
03 / 05
Louvered lower-plenum vent wall with C1D1-rated explosion-proof fixture overhead

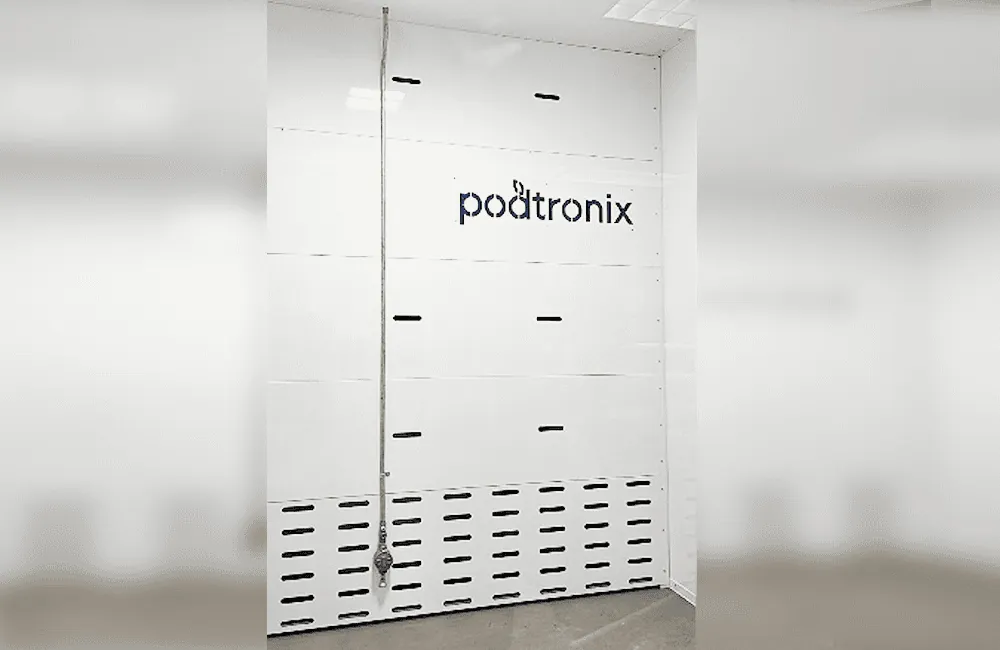

Interior vent wall – louvered base plenum with conduit riser and Podtronix branding
04 / 05
Interior vent wall – louvered base plenum with conduit riser and Podtronix branding
Interior corner view – flush panel walls with fire extinguisher station and cleanout access panel
05 / 05
Interior corner view – flush panel walls with fire extinguisher station and cleanout access panel

Project Specifications

Location
Missouri
Category
Extraction Labs
Model
HZ-B-DS-10-12-10-1L
Dimensions
I.D. 9'8″ Wide × 10'0″ Depth × 10'0″ High (100 sq. ft.) · O.D. 10'0″ Wide × 12'4″ Depth × 10'2″ High (120 sq. ft.)
Status
Complete
